Report to: Development Services Committee                                    Report Date: May 5, 2009





SUBJECT:                          RECOMMENDATION REPORT

                                            Markham Stouffville Hospital

                                            Site Plan Endorsement for the Hospital Expansion

                                            File Number SC 09-110229



PREPARED BY:               Doris Cheng, East District Senior Planner – extension 2331





RECOMMENDATION:



1)                  That the report dated May 5, 2009 entitled “RECOMMENDATION REPORT, Markham Stouffville Hospital Site Plan Endorsement for the Hospital Expansion” be received;

2)                  That the Site Plan Application (SC 09-110229) submitted by Markham Stouffville Hospital to permit the expansion of the existing facility  be endorsed, subject to the conditions attached as Appendix ‘A’;

3)                  That staff continue to work with the Markham Stouffville Hospital and their consultants to ensure a unified vision for the development of the Markham Stouffville Hospital health campus and the future East Markham Community Centre and Library;

4)                  That site plan approval be delegated to the Director of Planning and Urban Design or her designate, to be issued following execution of a site plan agreement.  Site plan approval is issued only when the Director or her designate has signed the site plan;

5)                  And that staff be authorized and directed to do all things necessary to give effect to this resolution.



EXECUTIVE SUMMARY:

Markham Stouffville Hospital staff have been working with Town staff to finalize the site plan and design of the proposed hospital expansion, including associated external infrastructure.  This report recommends endorsement of the final site plan and elevations (Figures 4 through 8), subject to the conditions outlined in Appendix ‘A’.



The proposed expansion includes a four storey, 34,490 m² (371,247 ft²) addition to the southwest of the existing hospital building; renovations to the existing hospital building, which will provide a physical link to the proposed East Markham Community Centre & Library (EMCC&L); proposed future locations for additional medical office buildings fronting Church Street (which will be subject to a separate site plan application); and a proposed location for a district energy building near the proposed EMCC&L.  The proposed site plan also includes 920 additional surface parking spaces.



The formal visual and vehicular access to the campus will continue to be from Church Street however the site plan also includes an improved internal road network for the Hospital lands.  This includes a new access from 9th Line to be added in the southern portion of the property, which will extend northward to a private internal driveway.  This new access will form a portion of a new municipal street that will eventually extend to Bur Oak Avenue along the south boundary of the Hospital site.   A private driveway will connect this portion of the new street with the newly re-aligned Butternut Lane.  These improvements will provide a more complete vehicular circulation network that connects the existing components of the Hospital with the new proposed addition.



The Hospital is committed to sustainability initiatives including alternative energy sources through Markham District Energy, integrating many of the measures of LEED design, a comprehensive Transportation Demand Management (TDM) Plan (including the provision of preferred carpool parking spaces, bicycle storage facilities and change areas) and improvements to the road network to accommodate public transit.  They have also committed to integrating environmentally friendly practices into their site and building design.



Although the site plan has changed in building design and massing since endorsement in principle was granted to the Hospital by Development Services Committee on June 17, 2008, Town staff believe that the MSH design team has addressed the Town’s requirements and concerns and that the design maintains the vision of the Cornell community.



1. Purpose                     2. Background                      3. Discussion                        4. Financial



5. Others (HR, Strategic, Affected Units)                                   6. Attachment(s)

PURPOSE:

The purpose of this report is to recommend endorsement of the site plan for the Markham Stouffville Hospital expansion (Figure 4), and to indicate that staff will continue to work with Hospital staff and their consultants to ensure a unified vision for the development of the Hospital campus and the future East Markham Community Centre and Library.



BACKGROUND:

Markham Stouffville Hospital (MSH) has been serving the surrounding communities since 1990.  As the communities continued to grow, the facilities at the Hospital remained the same.  To better serve the growing population demands, the Ministry of Health and Long Term Care approved plans for the Markham Stouffville Hospital expansion in 2005.  These plans include a combined hospital and community centre campus to be developed in partnership with the Town that will connect community members with access to healthcare, recreation, fitness, education and library services – an overall vision for health and wellness.



MSH has committed to adhering to a set of guiding principles intended to reflect the values and design of the Cornell community.  The focus will be on creating a healthy environment that will allow for the delivery of quality healthcare throughout construction, while recognizing the importance of future development within the site and enabling growth opportunities.



Property and Area Context

The Markham Stouffville Hospital lands subject to this site plan application are located east of Ninth Line, west of Bur Oak Avenue, between Riverlands Avenue and Highway 7 as follows (Figure 3):





Surrounding land uses include:



The Markham Stouffville Hospital expansion proposal

The site plan has evolved since Development Services Committee endorsed it in principle on June 17, 2008.  The final proposal consists of the following components (Figure 4):



The formal visual and vehicular access to the campus will continue to be from Church Street/Butternut Lane, with an additional access to be provided from 9th Line at the south end of the property.   The site plan also provides for an integrated network of driveways for pedestrian, bicycle, and vehicular traffic.  With respect to open space, the proposal includes private gardens, a large open space to the south of the existing hospital building, and a 12.0 m linear strip along the frontage of 9th Line to be conveyed to the Town as part of the Golden Jubilee Greenway.



The proposal also includes a shift of the approach alignment of the existing heliport slightly to the southeast to accommodate the EMCC&L.  The preferred location of the heliport on the roof of the new hospital addition is included as part of the design package to be tendered, but funding for the relocation has not yet been approved by the Ministry of Health.



Staff have worked closely with the MSH team to create an institutional health and wellness campus which includes the expanded hospital and future EMCC&L.  Details related to the physical link to the EMCC&L and shared facilities continue to be finalized as a part of the EMCC&L development plans.



The proposed expansion is expected to be phased over the next six years as follows:



The Hospital expansion is part of a longer term development plan

Longer term plans for the Hospital campus may include the redevelopment of Participation House and the construction of various campus buildings, including additional office buildings and parking structures to accommodate opportunities for the incremental expansion of the community hospital to a regional medical centre.  The proposed layout of the site plan is intended to allow opportunities for additional health and wellness related facilities and services in the future without major site re-design.



Official Plan designation

The MSH lands are designated “Institutional” in the 2008 Cornell Secondary Plan which provides for the proposed uses.



The MSH lands are subject to two Zoning By-law Amendment applications

The existing hospital campus and landholdings north of Church Street are predominantly zoned “Institutional - Special” [I (S)] in By-law 1229.  A strip of land along the east side of the property is zoned Agricultural (A1) in By-law 304-87, as amended (Figure 2).  The lands to the south, which were recently acquired by the Hospital, are zoned Rural Residential 4 (RR4) in By-law 304-87 as amended (Figure 2).



The Institutional zone within By-law 1229, as amended, contains development standards, including height and lot coverage provisions which require amendment to permit the expansion of the hospital.  A zoning amendment application, covering the majority of the lands subject to this site plan application, is currently being processed and a by-law is expected to be brought to Council for enactment shortly.  The zoning amendment will include varying height permissions on the site, including permissions for development up to 10 storeys in the interior of the hospital campus, consistent with the Cornell Secondary Plan.



The recently acquired lands south of the main Hospital campus and the lands north of Church Street were not included in the initial zoning application, and require a separate zoning amendment application and public meeting.  An application to rezone the additional lands has been submitted and a public meeting is anticipated in early June, 2009.  Through the two zoning by-law amendments, the Hospital lands will be zoned with consistent provisions in urban expansion By-law 177-96, having regard for the surrounding Cornell community.  The intent of the zoning is to provide flexible, yet comprehensive permissions that address the Hospital’s current and future requirements, in conformity with the Cornell Secondary Plan.



OPTIONS/ DISCUSSION:

Changes in circumstances since June 2008 endorsement in principle

At the June 17, 2008 Development Services Committee meeting, Committee endorsed in principle a conceptual Master Site Plan to permit the Hospital to proceed with a request for funding from Infrastructure Ontario and a Request for Proposals and tendering process.  Shortly after Council’s endorsement in principle, the provincial government changed the delivery model of the hospital expansion from a Design, Build, Finance and Maintain (DBFM) project, requiring a full Request for Proposal be issued to design/build consortiums, to a Build Finance (BF) model.  This change allowed MSH to continue with B&H Architects as the project architects responsible for site plan approval as well as  tendering of the detailed construction drawings and specifications to a selected list of pre-qualified contractors.



Site plan and elevations are considered acceptable

The MSH design team have worked closely and collaboratively with Town staff in developing the site plan, landscape treatments and building elevations, to create a healthy and more sustainable development on this site, and to maintain the design vision of the Cornell community.  The site plan and elevations are in keeping with the Town’s design criteria, as documented in the Principles of Development and Urban Design Guidelines presented to Development Services Committee in June 2008.



The proposed building elevations and massing have been revised to acknowledge its context within the Cornell community (Figures 5 to 10). The vernacular of the new building is in keeping with the Cornell character and forms the basis from which this important community resource will continue to develop. This relationship includes design features and the use of brick (the selected colour is an original brick colour chosen for the Cornell community) as the main exterior material.

The built form has also been broken up to reduce the impact of the massing on the west and south sides.  The north elevation has been designed to act as the main entrance to the complex, and the architectural colonnade along the front of the new expansion connects to the existing building, providing a focus at the main entrance and an ideal location for the transit stop.  The rhythm and proportion of windows, and window treatment detail, have been considered to provide verticality and scale that is sympathetic to the “Cornell character”.  The design also includes glass enclosed stair towers which provide light and visibility into the building, and adds visual interest and improved safety, but will also have regard for appropriate Fatal Light Awareness Program (FLAP) requirements.  These requirements include a program to achieve a measurable reduction in night-lighting and extinguishing all exterior vanity lighting during migratory periods.  These requirements are included in the conditions of site plan approval attached as Appendix ‘A’.



The landscape master plan incorporates several spaces within the campus to create and re-enforce the Hospital’s commitment to providing a health and wellness hub within the community.  Some spaces are designed for patients and their visitors and other spaces such as a visitor garden, gateway entrances, enhanced parking medians and the future wellness garden, are intended for both Hospital clients and the general public.  Plant material has been chosen to create focal points at gateway locations as well as tie the hospital campus together with the EMCC&L.  The end result will be a cohesive landscape for the entire health and wellness campus, with a large institutional building that is in keeping with the size and scale of the Cornell community, while respecting the transition area between the traditional residential neighbourhoods of Cornell and the emerging higher density, mixed use precinct of Cornell Centre to the south.



Staff will continue to work with the MSH team to ensure a unified vision for the MSH health campus and the future EMCC&L, consistent with the Cornell community.



The Hospital will connect to Markham District Energy

Markham Stouffville Hospital has committed to having their energy needs supplied by Markham District Energy.  A possible location for the MDE plant location is identified on the site plan, abutting the future EMCC&L parking structure.  While discussions with regard to the details of the plant are ongoing, the Hospital has committed to this sustainable alternative energy resource to service the Hospital.



The Hospital is committed to several Sustainability Initiatives including LEED

The MSH has committed to achieving many of the measures of LEED design; however, the opportunities to apply the LEED initiatives are somewhat limited.  This limitation results from the fact that the design of the hospital is governed by various codes and regulatory bodies that mandate the minimum building systems performance levels for life safety, infection control and clinical functionality.  Nevertheless, MSH has made a commitment to the long-term sustainability of the MSH campus and intends to satisfy LEED initiatives which will qualify the new addition for LEED certification, possibly at the silver level.  These initiatives include energy efficiency measures which will ensure that the building exceeds the Model National Energy Code Building Standard, water efficient landscaping, water efficient plumbing fixtures and the collection of recyclables.  MSH is also providing additional sustainability initiatives within its campus design including a comprehensive Transportation Demand Management (TDM) Plan (including the provision of several preferred carpool parking spaces, bicycle storage facilities and change areas) and improvements to the internal road network, as described below, which will accommodate public transit.  As mentioned above, the Hospital is also connecting to MDE which is a key sustainability initiative.



Other sustainability initiatives undertaken by the Hospital include the integration of environmental practices into their site and building design.  These initiatives are itemized in the Strategic Priorities section of this report, and described more fully in Appendix ‘B’ to this report.



The proposal provides an expanded internal road network

Staff have encouraged the MSH team to implement design standards for streets and parking facilities to conform to the MSH Urban Design Guidelines and to be consistent with the Cornell Community Design Plan, which is currently being finalized.



The existing access to Church Street will continue to serve as the main hospital entrance providing public and additional transit access to the medical building, the hospital, emergency department and parking.  The Hospital has agreed to provide a widening on the south side of Church Street, increasing the right-of-way width for Church Street to 25 metres.  The widening will provide the required boulevard width along Church Street to provide municipal services to future buildings on the south side of Church Street, on the Hospital lands.



The proposed new access from 9th Line in the south west portion of the property will coincide with the location of a minor collector road identified in the Cornell Secondary Plan, which extends from 9th Line to Donald Cousens Parkway.   This minor collector road is intended to be aligned with Rose Way on the west side of 9th Line.



Council and residents have expressed concerns regarding the location of Street ‘A’ relative to Rose Way and the potential of traffic infiltration into the existing residential neighbourhood.  This matter was first reported out to the Cornell Advisory Committee in October 2006.  Since that time, there has been various communications between staff, DSC and the residents on this matter.  Most recently, staff held a public information meeting at the request of Development Services Committee on December 11, 2008.  The meeting was attended by members of Council and a number of residents.  Staff explained the advantages of having Street ‘A’ aligned with Rose Way and that traffic control signage can be used in future if traffic infiltration proves to be an issue.



The Hospital proposes to construct a portion of this street as part of Phase 1 to full municipal standards with a proposed right-of-way width of 22.0 metres, accommodating two lanes of traffic.  MSH is proposing to dedicate 11 metres of this future street to the Town with another 11 metres to be acquired from the adjacent landowner to the south to complete the required right-of-way (Figure 4). The street will be constructed in stages as lands are assembled and the lands to the south and east are developed.  Upon completion of the street to Bur Oak Avenue, the Town will assume the street as a municipal ROW.  The MSH will construct the first portion of the street at no cost to the Town, and will participate in the cost sharing of future phases of road construction.  Until the entire street is constructed and assumed by the Town, MSH will operate and maintain it as a private driveway.



A private driveway connected to this access, to be owned and constructed by the Hospital, will provide access to the hospital addition, the new Markham District Energy plant, and the adjoining proposed EMCC&L building and extend through to Bur Oak Avenue.  Although intended to be kept in Hospital ownership, the treatment of the driveway will be similar in design to a public streetscape, complete with pedestrian sidewalks, and in keeping with Cornell design standards.

The existing Butternut Lane is proposed to be slightly realigned at the Church Street intersection to the west and extend southward to the above noted driveway, linking to the access on 9th Line.  This will provide the site with an internal north-south connection and add to the local campus road network (Figure 4).  Requirements regarding the internal and external road network, including the widening on Church Street and the new access from 9th Line, are included in the conditions of site plan approval attached as Appendix ‘A’.



The proposed parking exceeds the Town Parking By-law 28-97 requirements

Currently, the Town of Markham Parking By-law requires a minimum of 1 parking space for every 37m² of net floor area for the hospital use, which results in a parking requirement of 1,834 parking spaces to serve the existing medical building and proposed expanded hospital building.  The site plan includes 2,130 surface parking spaces (296 extra spaces).  Approximately 500 spaces are proposed to be located north of Church Street (required to accommodate staff and visitor parking during construction) and the remaining 1,630 spaces will be located within the main campus south of Church Street.  The additional parking spaces are being provided by the Hospital to meet anticipated long term needs.  In addition, the funds generated as a result of parking revenues are utilized for the operation of the Hospital and in part will fund the expansion.  The longer term plans for the Markham Stouffville Hospital may also include structured parking facilities.



Staff have worked with MSH staff to reduce the impact of expanses of continuous asphalt in the surface parking areas, including limiting the number of continuous parking spaces by providing landscaping along the perimeter of the parking lots and large landscape islands (generally 5 metres wide) within the parking lots.  The Hospital has also undertaken initiatives in support of alternative transportation modes, including transportation demand management (TDM), preferred parking for carpool vehicles, bicycle racks, and an integrated pedestrian network.



MSH will convey lands to the Town for the Golden Jubilee Greenway

As indicated previously, the Hospital has agreed to convey, at no cost to the Town, a 12 metre wide strip of land for the purposes of the Golden Jubilee Greenway.  Although the land conveyance will exclude the section of lands adjacent to Participation House, the Hospital has agreed to convey these additional lands once the land lease expires in 2069 or upon redevelopment of that facility.  The conveyance of the Greenway lands in the short and long term is included in the conditions of site plan approval attached as Appendix ‘A’.



External easement required for servicing

The Hospital requires external services (storm and sanitary sewers) to be installed adjacent to 9th Line south of the Hospital property.  Town staff have agreed that these services can be accommodated in the future Golden Jubilee Greenway to be located between the Hospital and Highway 7.  The Golden Jubilee Greenway in this location would be conveyed to the Town as part of a future development approval of the lands.   In the interim, the Town will need an easement to be secured from the landowners to the south (Litvack) for the installation of the external services.



Comments from internal departments and external agencies have been addressed

Region of York approval is required for the new 9th Line access

The Region of York has been circulated the site plan for review, particularly pertaining to the location of the proposed access from 9th Line and potential traffic signalization.  The Region of York has indicated that it has no issues related to the location of the access provided that it is aligned with Rose Way on the west side of 9th Line.  Final review and approval by the Region of York of the construction drawings and access onto 9th Line is included in the conditions of site plan approval attached as Appendix ‘A’.



Toronto and Region Conservation Authority has provided conditional approval

TRCA staff have provided comments and have indicated that they have no objection to the conditional approval of the application, however they have requested a Sediment and Erosion Control Plan for their review, as well as an updated development phasing and staging plan.  Permits are also required for the decommissioning of the onsite stormwater management pond and drainage channel.  TRCA requirements are included in the conditions of site plan approval attached as Appendix ‘A’.



Property requirements for the shared Hospital and EMCC&L campus

Town and MSH staff continue to discuss the property and easement requirements needed to facilitate the land sale for the EMCC&L as well as the land requirements for the widening of Church Street, the road requirements for the 9th Line access, servicing easements along Church Street and 9th Line, and between the future EMCC&L and the Hospital. Appropriate land requirements and easements are included in the conditions of site plan approval attached as Appendix ‘A’.



FINANCIAL CONSIDERATIONS AND TEMPLATE: (external link)

Not Applicable



HUMAN RESOURCES CONSIDERATIONS

Not Applicable.



ALIGNMENT WITH STRATEGIC PRIORITIES:

The proposed site plan application will assist with the implementation of the following Town of Markham Strategic Priorities:



The MSH proposal aligns with the strategic priority of Growth Management by providing part of the health care infrastructure/services required to support the population growth anticipated in Markham and adjacent municipalities; by integrating and delivering a transportation network and municipal infrastructure; and continuing inter-governmental coordination between various levels of government together with external agencies to achieve the goal of expanding health care facilities.



The MSH continues to work with VIVA and York Transit to provide new and improved public transit accessibility to commuters and improvements to the local road network.  MSH is also committed to alternative modes of transportation options by providing TDM opportunities, preferred parking spaces for car pool vehicles, integrated pedestrian network of walkways, bicycle paths and secure bicycle storage facilities.  They are also working with Smart Commute 404-7 to introduce alternative transportation options.



MSH has stated their commitment to long-term sustainability through the integration of environmental practices into their site and building design, including LEED initiatives.  Some of the Hospital’s Sustainable Design Initiatives include:



§         Energy supplied by MDE

§         CFC Reduction in HVAC Equipment

§         Optimize Energy Performance

§         Storage and Collection of Recyclables

§         Indoor Air Quality Performance

§         Environmental Tobacco Smoke Control

§         Alternative Transportation

§         Stormwater Management

§         Energy Efficient Lighting

§         Water Efficient Landscaping

§         Water Efficient Plumbing Fixtures



The Hospital is also currently considering additional initiatives including using recycled contents for building materials and low emitting interior materials.  The proposed sustainable design initiatives are attached as Appendix ‘B’.’







MSH is coordinating with the Town to deliver the EMCC&L within an integrated health and wellness campus.  This will result in an integrated community service with a focus on health, wellness and lifelong learning, ensuring that the needs of the community are addressed within the programs, policies and facility development.  The Hospital is also working with the Town to provide an open space concept for the lands between the future EMCC&L and the Hospital for the purpose of shared community use.



The MSH has retained the services of Accessible Solutions Inc. (ASI) to provide an Accessibility Plan, which includes a comprehensive review of the new site layout, highlight potential accessibility barriers and to provide recommendations to ensure the Hospital provides a barrier-free environment.



BUSINESS UNITS CONSULTED AND AFFECTED:

The applications were circulated to all Town departments and external agencies and their comments have been incorporated into this report, and will be addressed prior to final site plan approval.



CONCLUSIONS:

Staff are satisfied with the proposal and recommend that the site plan application be endorsed, subject to the conditions attached as Appendix ‘A’ to this report.









______________________________                        ______________________________

Biju Karumanchery, M.C.I.P, R.P.P                                                   Jim Baird, M.C.I.P, R.P.P

Senior Development Manager                                                           Commissioner, Development Services

Planning & Urban Design



ATTACHMENTS:

Figure 1 – Location Map

Figure 2 – Area Context/Zoning

Figure 3 – Air Photo 2007

Figure 4 – Master Site Plan

Figure 5 – Elevations

Figure 6 – Elevations

Figure 7 – Elevations

Figure 8 – Elevations

Figure 9 – North Elevation - Colour

Figure 10 – North Perspective

Figure 11 – South Perspective



Appendix A – Site Plan Conditions

Appendix B – Sustainability Initiatives



AGENT:     Mr. Jim Kirk

                     Malone Given Parsons Ltd.

                     140 Renfrew Drive, Suite 201

                     Markham ON  L3R 6B3

                     Tel: 905-513-0170  Fax: 905-513-0177  Email: jkirk@mgp.ca



File Path:  File path: Amanda\File 09 110229\Documents\Recommendation Report

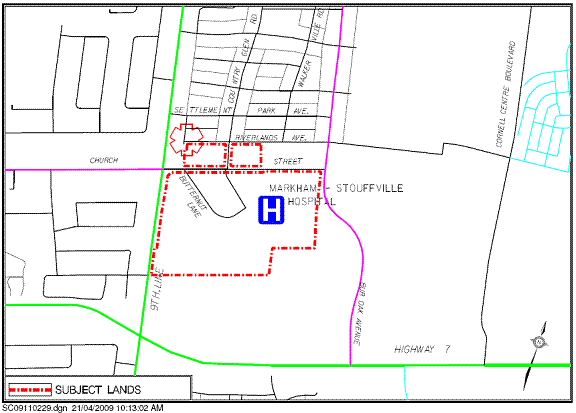

Figure 1 – Location Map
